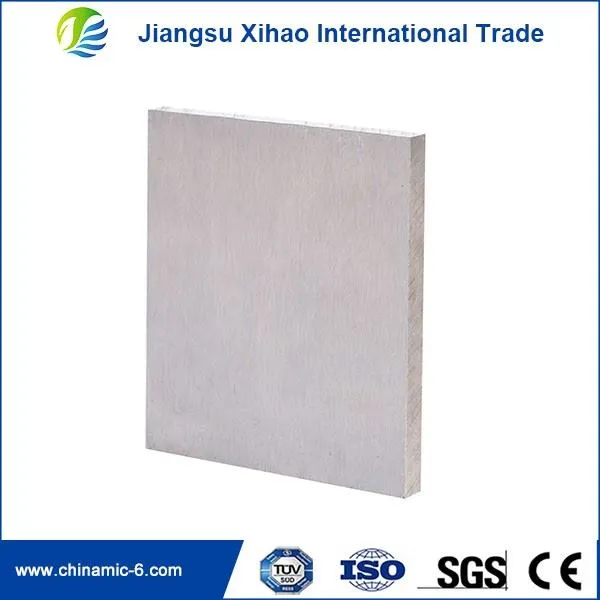

Aluminium Alloy 5083 Plate
Description
Technical Parameters
Introduction
Aluminum alloy 5083 plate is a non-heat treatable alloy that is highly sought after for its ability to resist harsh environments, such as corrosion from seawater and industrial chemicals. This alloy is known for its exceptional strength, but its machinability is limited. Due to its resistance to corrosion, the AL 5083 is commonly used in marine and aquatic applications, particularly in shipbuilding. Additionally, it is frequently used for pressure vessels, food processors, and transportation-related applications such as truck and rail bodies. This versatile alloy has proven to be an ideal material for a range of heavy-duty applications.
Magnesium, along with small traces of manganese and chromium, is present in aluminum alloy 5083. The strength of 5083 remains impressive even after welding. It is worth mentioning that among the non-heat treatable alloys, 5083 plate possesses the highest strength. However, caution should be exercised when utilizing it above a temperature of 65°C.
Aluminium alloy 5083 plate Chemical Composition
| Element | Composition % |
Manganese (Mn) | 0.40 - 1.0 |
Iron (Fe) | 0.00 - 0.40 |
Copper (Cu) | 0.0 - 0.10 |
Magnesium (Mg) | 4.0 - 4.90 |
Silicon (Si) | 0.0 - 0.40 |
Zinc (Zn) | 0.0 - 0.25 |
| Element | Composition % |
Chromium (Cr) | 0.05 - 0.25 |
Titanium (Ti) | 0.0 - 0.15 |
Aluminium (Al) | Balance |
Mechanical Properties
Property | Value |
Proof Stress | 115 Min MPa |
Tensile Strength | 270 - 345 MPa |
Elongation at 50 mm | 15 Min % |
Hardness Brinell | 75 HB |
Bend Radius 90° | 2.5 x t |
It is important to note that the mechanical properties displayed in the given information pertain to the H111 temper. To create similar content, the information could be reiterated in a different way, such as: The mechanical properties specified are only applicable to the H111 temper and should not be extrapolated to other conditions. | |
Mechanical Properties
| Property | Value |
Proof Stress | 115 Min MPa |
Tensile Strength | 270 - 345 MPa |
Elongation at 50 mm | 15 Min % |
Hardness Brinell | 75 HB |
Bend Radius 90° | 2.5 x t |
Please note that Mechanical Properties shown are for H111 temper | |
Property | Value |
Proof Stress | 215 Min MPa |
Tensile Strength | 305 MPa |
Elongation at 50 mm | 15 Min % |
Hardness Brinell | 85 HB |
Bend Radius 90° | 3.5 x t |
Please note that Mechanical Properties shown are for H116 temper | |
Product Application
Manufacture equipment, food processing equipment, chemical container processing equipment, mold making, aerospace, aircraft manufacturing, nuclear power plants, and medical and health facilities.
